Path-Based Nondisperive Flow Direction

Computes nondispersive flow/drainage direction according to path-based methods over grid-based digital elevation models. This is an alternative to terrain(v="flowdir").

Usage

# S4 method for class 'SpatRaster'
flowDir(x, lambda=0.5, deviation_type=c("ltd","lad"), max_iters=10^6, filename="", ...)

Arguments

x: SpatRaster with elevation data
lambda: Parameter between 0 and 1
deviation_type: Character. Available options are "ltd" (the default) and "lad". If "ltd", nondispersive flow directions are determined using the least transversal deviation (LTD) criterion. If "lad", nondispersive flow directions are determined using the least angular deviation (LAD) criterion. See Orlandini et al. (2003) for details.
max_iters: maximum iterations for drainage path starting points detection
filename: character. Output filename
...: additional arguments for writing files as in writeRaster

Value

SpatRaster

Details

The algorithm is an adaptation of the one proposed by Li et al. (2022) and Orlandini et al. (2003). This function is experimental and under development: results are to be verified.

Author

Emanuele Cordano

References

Orlandini, S., G. Moretti, M. Franchini, B. Aldighieri, and B. Testa (2003). Path-based methods for the determination of nondispersive drainage directions in grid-based digital elevation models, Water Resour. Res., 39, 1144, doi:10.1029/2002WR001639, 6. https://agupubs.onlinelibrary.wiley.com/doi/full/10.1029/2002WR001639

Li, Z., Shi, P., Yang, T., Wang, C., Yong, B., & Song, Y. (2022). An improved D8-LTD for the extraction of total contributing area (TCA) by adopting the strategies of path independency and local dispersion. Water Resources Research, 58, e2021WR030948. https://doi.org/10.1029/2021WR030948 https://agupubs.onlinelibrary.wiley.com/doi/full/10.1029/2021WR030948

Useful presentation: http://www.idrologia.unimore.it/orlandini/web-archive/seminars/nyc-2008-2.pdf

Examples

elev1 <- array(NA,c(9,9))
elev2 <- elev1
dx <- 1
dy <- 1
for (r in 1:nrow(elev1)) {
  y <- (r-5)*dx
  for (c in 1:ncol(elev1)) {
    x <- (c-5)*dy
    elev1[r,c] <- 5*(x^2+y^2)
    elev2[r,c] <- 10+5*(abs(x))-0.001*y
  }
}

## Elevation raster
elev1 <- rast(elev1)
elev2 <- rast(elev2)

t(array(elev1[],rev(dim(elev1)[1:2])))
#>       [,1] [,2] [,3] [,4] [,5] [,6] [,7] [,8] [,9]
#>  [1,]  160  125  100   85   80   85  100  125  160
#>  [2,]  125   90   65   50   45   50   65   90  125
#>  [3,]  100   65   40   25   20   25   40   65  100
#>  [4,]   85   50   25   10    5   10   25   50   85
#>  [5,]   80   45   20    5    0    5   20   45   80
#>  [6,]   85   50   25   10    5   10   25   50   85
#>  [7,]  100   65   40   25   20   25   40   65  100
#>  [8,]  125   90   65   50   45   50   65   90  125
#>  [9,]  160  125  100   85   80   85  100  125  160
t(array(elev2[],rev(dim(elev2)[1:2])))
#>         [,1]   [,2]   [,3]   [,4]   [,5]   [,6]   [,7]   [,8]   [,9]
#>  [1,] 30.004 25.004 20.004 15.004 10.004 15.004 20.004 25.004 30.004
#>  [2,] 30.003 25.003 20.003 15.003 10.003 15.003 20.003 25.003 30.003
#>  [3,] 30.002 25.002 20.002 15.002 10.002 15.002 20.002 25.002 30.002
#>  [4,] 30.001 25.001 20.001 15.001 10.001 15.001 20.001 25.001 30.001
#>  [5,] 30.000 25.000 20.000 15.000 10.000 15.000 20.000 25.000 30.000
#>  [6,] 29.999 24.999 19.999 14.999  9.999 14.999 19.999 24.999 29.999
#>  [7,] 29.998 24.998 19.998 14.998  9.998 14.998 19.998 24.998 29.998
#>  [8,] 29.997 24.997 19.997 14.997  9.997 14.997 19.997 24.997 29.997
#>  [9,] 29.996 24.996 19.996 14.996  9.996 14.996 19.996 24.996 29.996

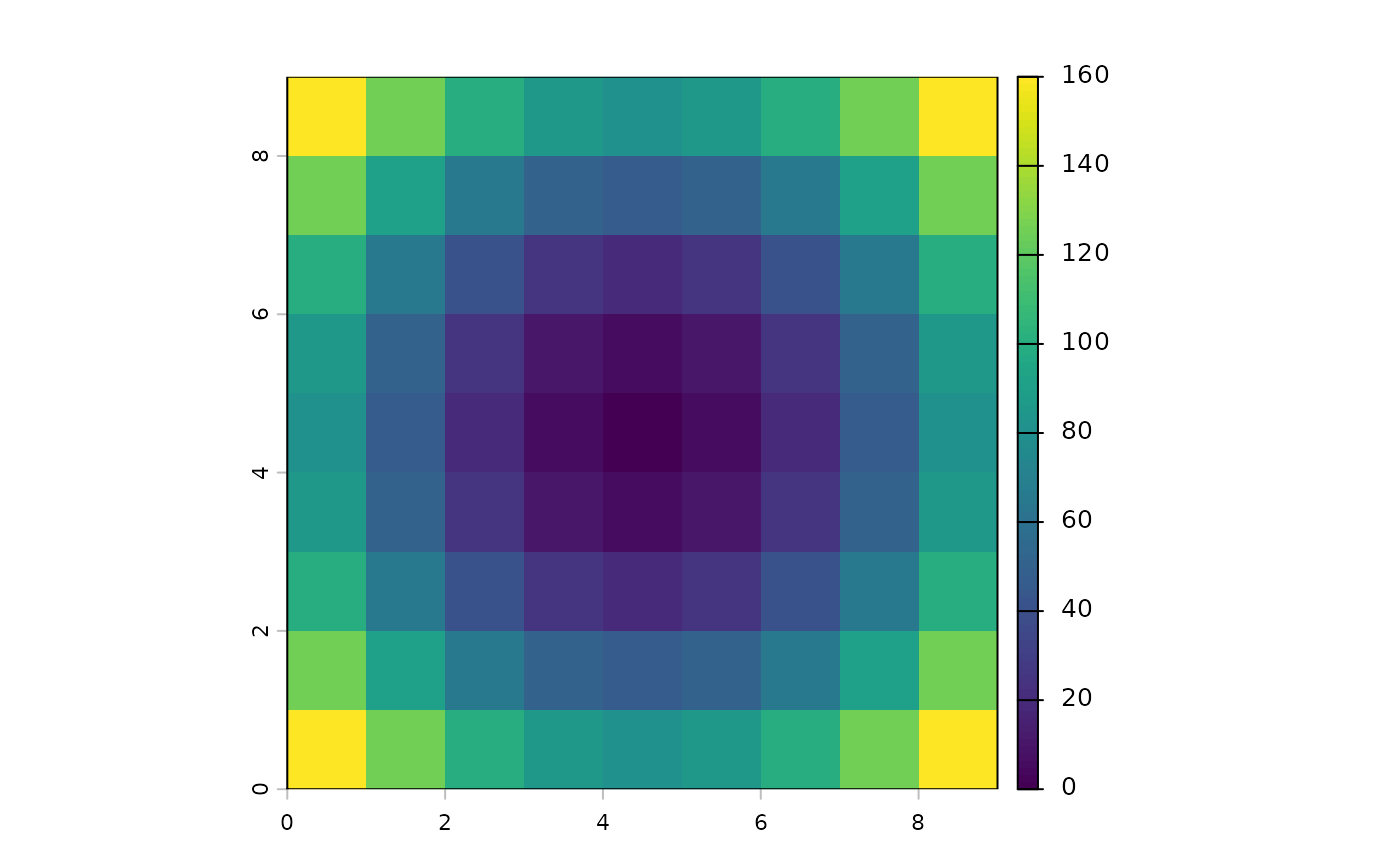

plot(elev1)

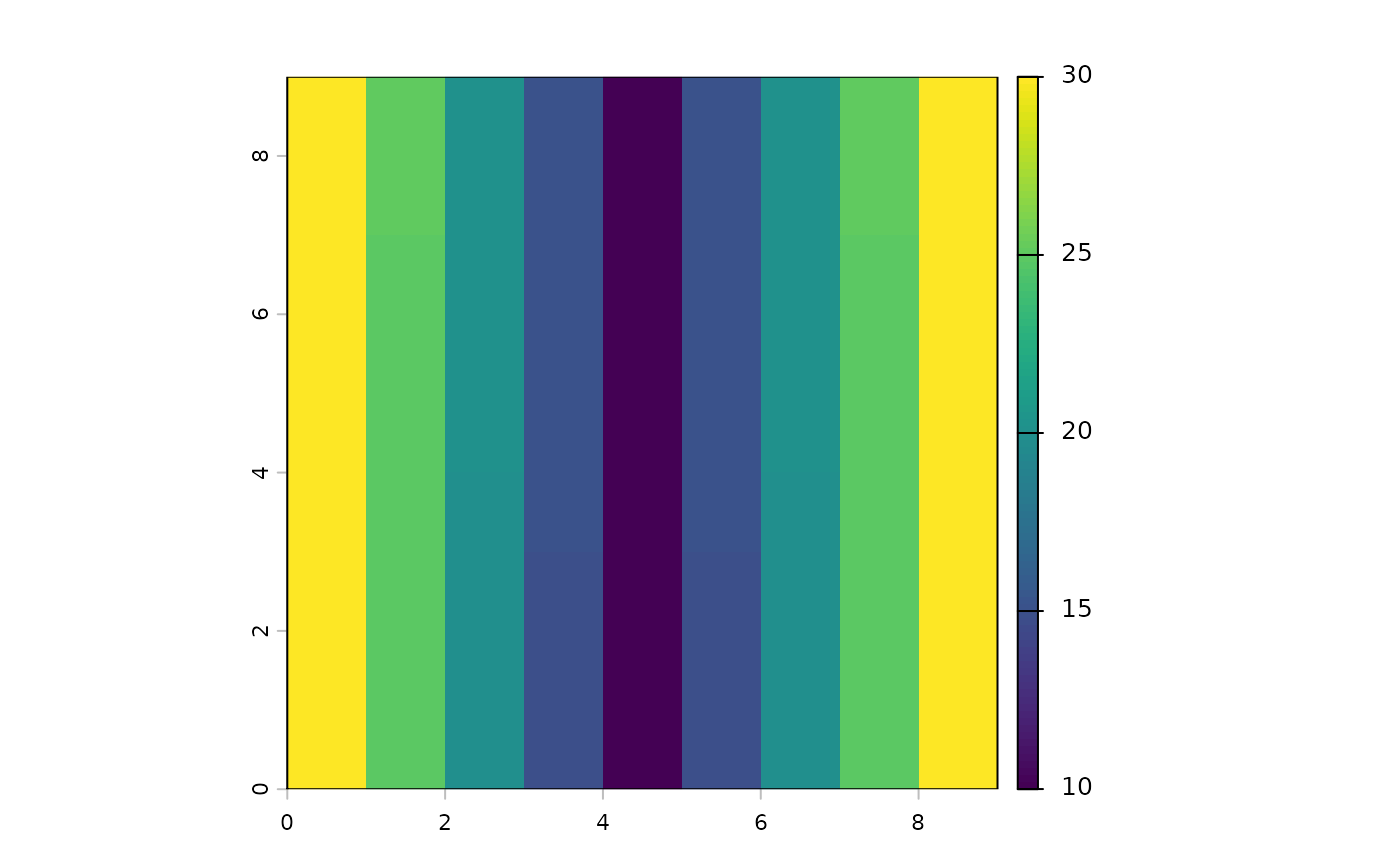

plot(elev2)


## Flow direction raster
fdir1 <- flowDir(elev1, lambda=1)
fdir2 <- flowDir(elev2, lambda=1)

elev <- rast(system.file('ex/elev.tif',package="terra"))

fdirlad1 <- flowDir(elev, lambda=0.5, deviation_type="lad")
fdirlad2 <- flowDir(elev, lambda=0.5, deviation_type="lad")

###### EXPLICATIVE LONG EXAMPLE

library(calculus)
#>
#> Attaching package: ‘calculus’
#> The following object is masked from ‘package:terra’:
#>
#>     wrap

color_palette <- terrain.colors(50)
### ---------------------------------------------------------
### 1. GRID DEFINITION
### ---------------------------------------------------------
dx <- dy <- 1
xmin <- -10
xmax <- 10
ymin <- -10
ymax <- 10

x <- seq(xmin, xmax, by = dx)
y <- seq(ymin, ymax, by = dy)

vars <- expand.grid(x = x, y = y)

### ---------------------------------------------------------
### 2. DEFINE TWO ANALYTICAL ELEVATION FUNCTIONS
### ---------------------------------------------------------

model=c("vshape","paraboloid","planar")[1]

if (model=="vshape") {
  elev_f1 <-  "2.0*x*tanh(100*x) + 0.50*y"
  elev_f2 <-   "2.0*x*tanh(100*x) - 0.50*y"
} else if ((model=="paraboloid")) {
  elev_f1 <- " 10*(x^2+y^2)^0.8"
  elev_f2 <- " -10*(x^2+y^2)^0.8"
} else if ((model=="planar")) {
  elev_f1 <- " 2.0*x+0.225*y"
  elev_f2 <- "2.0*x-0.225*y"
}else {
  elev_f1 <- NULL
  elev_f2 <- NULL
}

### ---------------------------------------------------------
### 3. EVALUATE BOTH ELEVATION MODELS
### ---------------------------------------------------------

vars$elev1 <- evaluate(elev_f1, var = vars[,c("x","y")],params=list(ymin=ymin,ymax=ymax))
vars$elev2 <- evaluate(elev_f2, var = vars[,c("x","y")],params=list(ymin=ymin,ymax=ymax))

### ---------------------------------------------------------
### 5. BUILD RASTERS
### ---------------------------------------------------------

r1 <- rast(vars[,c("x","y","elev1")], type="xyz")
r2 <- rast(vars[,c("x","y","elev2")], type="xyz")

names(r1) <- "elev"
names(r2) <- "elev"

### ---------------------------------------------------------
### 6. FLOW DIRECTIONS (terra + LAD/LTD)
### ---------------------------------------------------------
deviation_types=c("lad","ltd")
lambdas <- c(0,0.5,1)

# Elevation Model A
r1$flow_d8 <- terrain(r1$elev, "flowdir")
# Elevation Model B
r2$flow_d8 <- terrain(r2$elev, "flowdir")

for (lambda in lambdas) {
  for (deviation_type in deviation_types) {
    it <- sprintf("flow_%s%03d", deviation_type, round(lambda*10))
    r1[[it]] <- flowDir(r1$elev, lambda=lambda, deviation_type=deviation_type)
    r2[[it]] <- flowDir(r2$elev, lambda=lambda, deviation_type=deviation_type)
  }
}

### ---------------------------------------------------------
### 7. VISUALIZATION EXAMPLES
### ---------------------------------------------------------
nrr <- 1+length(lambdas)*length(deviation_types)
par(mfrow=c(nrr,2))

# Model A
plot(r1$elev, main="Elevation Model A", col=color_palette)
as.arrows(r1$flow_d8, unit="flowdir", col="black")

# Model B
plot(r2$elev, main="Elevation Model B", col=color_palette)
as.arrows(r2$flow_d8, unit="flowdir", col="black")

for (lambda in lambdas) {
  for (deviation_type in deviation_types) {
    ita <- sprintf("flow_%s%03d", deviation_type, round(lambda*10))
    plot(r1$elev, main=sprintf("Model A - %s lambda=%1.2f",toupper(deviation_type),lambda),
         col=color_palette)
    terra::as.arrows(r1[[ita]], unit="flowdir", col="black")

    itb <- sprintf("flow_%s%03d", deviation_type, round(lambda*10))
    plot(r2$elev, main=sprintf("Model B - %s lambda=%1.2f",toupper(deviation_type),lambda),
         col=color_palette)
    terra::as.arrows(r2[[itb]], unit="flowdir", col="black")
  }
}


par(mfrow=c(1,1))

message("Analysis complete")
#> Analysis complete
