Build a SpatNetwork

netw creates r a SpatNetwork, in the same spirit as vect for SpatVector or rast for SpatRaster. It dispatches on the class of its first argument:

netw() – an empty network.
netw(<SpatVector of lines>, ...) – builds a network by noding the input lines (every place where two lines cross becomes a node, the line pieces between consecutive nodes become edges). The full coordinate sequence between nodes is preserved.
netw(<igraph>, ...) – builds a network from an igraph object. Vertex attributes give the node coordinates; an optional weight edge attribute supplies edge weights. Edges become straight 2-point lines between their end nodes (igraph carries no edge geometry).
netw(<filename>, ...) – reads a network from disk. Currently only the GDAL Geographic Network Model (GNM) format is supported. Use writeNetwork for the write side.
netw(<SpatNetwork>, ...) – identity (returns the input unchanged).

The same coercions are also exposed via methods::as: as(v, "SpatNetwork"), as(g, "SpatNetwork"), as(net, "igraph").

The accessors net_nodes, net_edges, net_nnodes, net_nedges, net_directed and net_weights return parts of the network as ordinary SpatVectors and primitives. .

Usage

# S4 method for class 'missing'
netw(x, ...)

# S4 method for class 'SpatVector'
netw(x, snap=0, merge=TRUE, directed=FALSE, weights=TRUE, ...)

# S4 method for class 'igraph'
netw(x, x_attr="x", y_attr="y", weight_attr="weight", crs=NULL, ...)

# S4 method for class 'character'
netw(x, ...)

# S4 method for class 'SpatNetwork'
netw(x, ...)

# S4 method for class 'SpatNetwork'
net_nodes(x, ...)
# S4 method for class 'SpatNetwork'
net_edges(x, ...)
# S4 method for class 'SpatNetwork'
net_nnodes(x, ...)
# S4 method for class 'SpatNetwork'
net_nedges(x, ...)
# S4 method for class 'SpatNetwork'
net_directed(x, ...)
# S4 method for class 'SpatNetwork'
net_weights(x, ...)

Arguments

x: the input. For netw: a SpatVector of lines, an igraph, a filename pointing to a GNM dataset, an existing SpatNetwork, or missing (for an empty network). For the accessor methods: a SpatNetwork.
snap: numeric. Snapping tolerance, in map units, for netw,SpatVector-method. If > 0, line endpoints (and other vertices) within snap of each other are coalesced before noding. Use this to repair small digitizing gaps in road centerlines. Default 0.
merge: logical. If TRUE (the default), runs of degree-2 shared endpoints are stitched back into single edges, so that only true junctions and dangling endpoints become nodes. Set FALSE to keep every endpoint of every input feature as a node (useful when the input has been pre-segmented and you want to preserve those breaks).
directed: logical. If TRUE, the network is directed and the orientation of each edge (from_node \(\to\) to_node) is the legal travel direction. Use this for water flow or one-way streets. Default FALSE.
weights: One of: TRUE (the default) to weight each edge by its geometric length (in meters when the CRS is lon/lat, otherwise in CRS units scaled to meters when the unit is known); FALSE for an unweighted network; a numeric vector of length nedges for custom edge weights; or a single character string giving the name of a numeric column of x – in which case each output edge gets the column value of its source feature (with edges that could not be attributed falling back to their geometric length, with a warning).
x_attr, y_attr: For netw,igraph-method: names of the vertex attributes giving node coordinates. Defaults match what as(net, "igraph") writes.
weight_attr: For netw,igraph-method: name of the edge attribute to use as weights. Defaults to "weight" (the igraph convention).
crs: character. For netw,igraph-method: optional CRS to assign to the SpatNetwork. If NULL, the crs graph attribute is used when present.
...: additional arguments (currently ignored).

Details

The construction from a SpatVector uses GEOS to "node" the input: all input lines are merged and split at every interior crossing, and exactly-coincident pieces are dissolved. With merge=TRUE, runs of edges connected through degree-2 nodes are then re-fused into a single edge – so a long road that was digitized as many short segments shows up as one edge per stretch between real junctions.

Per-edge attribute forwarding: each output edge is associated with the first input feature whose geometry covers the edge midpoint (within snap, or a small fraction of the bounding box if snap == 0). The 1-based row index of that input feature is stored as the source_id column on net_edges(), and the corresponding row of the input data.frame is copied into the edge attribute table. When merge=TRUE, an edge can span multiple source features that happened to be collinear and connected; only one source's attributes are forwarded in that case.

net_nodes() returns a SpatVector of points, one per node, with a degree column (number of incident edges). For directed networks, in_degree and out_degree columns are added.

net_edges() returns a SpatVector of lines, one per edge, with columns from_node, to_node, source_id, length (cached geometric length, in meters for lon/lat) and – when the network is weighted – a weight column. Any forwarded source attributes follow.

net_weights(net) returns the per-edge weights (or NULL for unweighted networks). net_weights(net) <- v replaces the weights with a numeric vector of length net_nedges(net); setting it to NULL marks the network as unweighted.

For the igraph entry point: forward (SpatNetwork -> igraph) preserves topology, directedness, edge weights, node coordinates (as vertex attributes x and y), additional edge columns from net_edges(), and the CRS (WKT2, on the graph attribute crs). Reverse (igraph -> SpatNetwork) is intentionally lossy: each output edge becomes a straight 2-point line between its end nodes since igraph carries no edge geometry. The igraph package is a Suggested dependency of terra; install it before calling these methods.

Value

A SpatNetwork for netw; a SpatVector for net_nodes/net_edges; an integer for net_nnodes/net_nedges; logical for net_directed; numeric (or NULL) for net_weights.

Examples

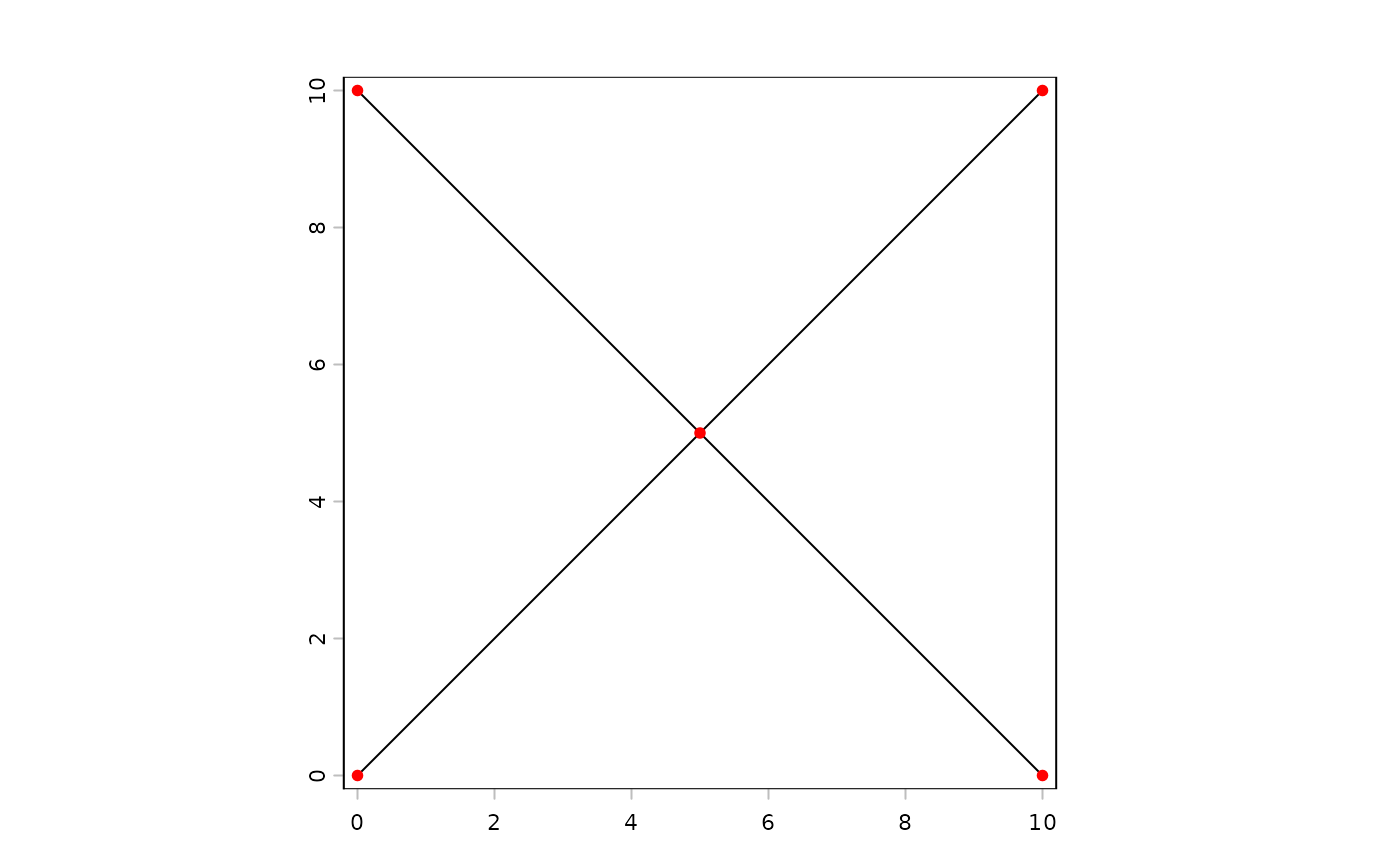

# Two crossing roads
a <- vect("LINESTRING(0 0, 10 10)", crs="local")
b <- vect("LINESTRING(0 10, 10 0)", crs="local")
roads <- rbind(a, b)
roads$name <- c("A", "B")

net <- netw(roads)
net
#> class       : SpatNetwork
#> type        : undirected, weighted
#> dimensions  : 5, 4  (nodes, edges)
#> extent      : 0, 10, 0, 10  (xmin, xmax, ymin, ymax)
#> coord. ref. : Cartesian (Meter)
#> names       :  name
#> type        : <chr>
net_nnodes(net)   # 5: 4 ends + 1 crossing
#> [1] 5
net_nedges(net)   # 4: each road is split in two
#> [1] 4
net_weights(net)  # length-based, all sqrt(50)
#> [1] 7.071068 7.071068 7.071068 7.071068

# Directed network (e.g. a stream network: from_node -> to_node is downstream)
streams <- netw(roads, directed=TRUE)
net_directed(streams)
#> [1] TRUE
net_nodes(streams)  # in_degree, out_degree columns appear
#> class       : SpatVector
#> geometry    : points
#> dimensions  : 5, 3  (geometries, attributes)
#> extent      : 0, 10, 0, 10  (xmin, xmax, ymin, ymax)
#> coord. ref. : Cartesian (Meter)
#> names       : degree in_degree out_degree
#> type        :  <int>     <int>      <int>
#> values      :      1         0          1
#>                    4         2          2
#>                    1         0          1
#>               ...

# Custom weights
net_weights(net) <- net_weights(net) * 1.5

# Coercion via setAs
net2 <- as(roads, "SpatNetwork")

if (FALSE) { # \dontrun{
# igraph round-trip (requires igraph)
g    <- as(net, "igraph")
back <- netw(g)        # or as(g, "SpatNetwork")
} # }

# Plot
plot(net)
